Slot Tubes Radial Internal Wire

Wedge wire nozzles prevent the outflow of filter media, activated carbon or sand and secure an even distribution of water at the same time.

Technical Details

• Materials: 304, 316L, Duplex, Super Duplex, SMO254, Hastelloy

• Construction: radial internal wire (FITO)

• Slot: 0.02mm and above

• Diameter ranges from 150mm - 1500mm

• Can either be used as support medium for mesh or directly as a filtration unit

Advantages

• Wedge wire is No. 1 when it comes down to cleanability

• Mechanical strength

• No clogging

• No maintenance or replacement costs

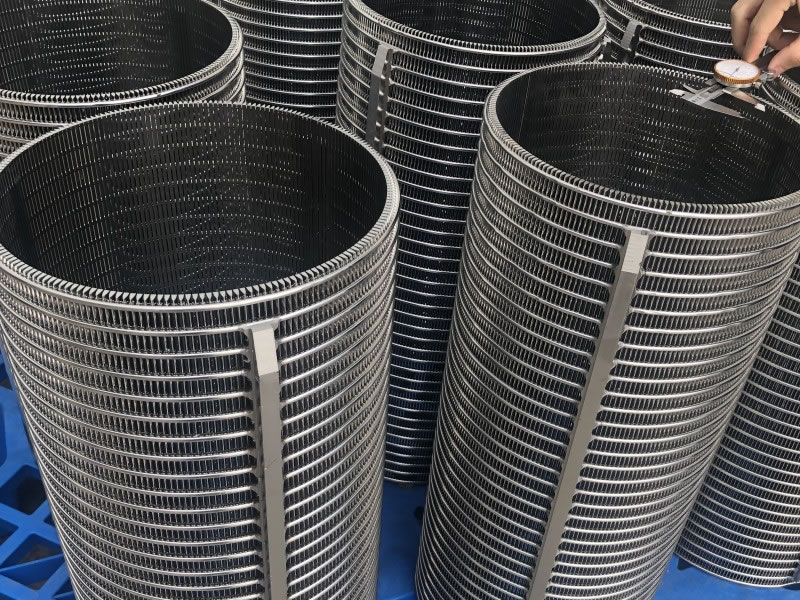

Screens for Screw Press

To maintain the liquid fertilizer pool in farms as small as possible a separator is the answer. Over the years Baitong has built a vast experience in the manufacturing of cylinders used in screw presses. Screw presses are also used in biogas installations, food processing, spent grain dewatering, etc. Screw presses dewater pulp fiber and sludge. The screw press can increase the dry matter by up to 30%.

Technical Details

• Construction : axial internal wire FITO

• Support wire is positioned on the outside, either as a ring or as a spiral (continuous construction)

• Special shaped support wire is used to avoid fibers becoming trapped

• Maximum length : 1950 mm

• Slot size : 0.25 mm and above

• With anti spin bars

Advantages

• Strong construction

• Non clogging surface

• Perfectly round cylinder

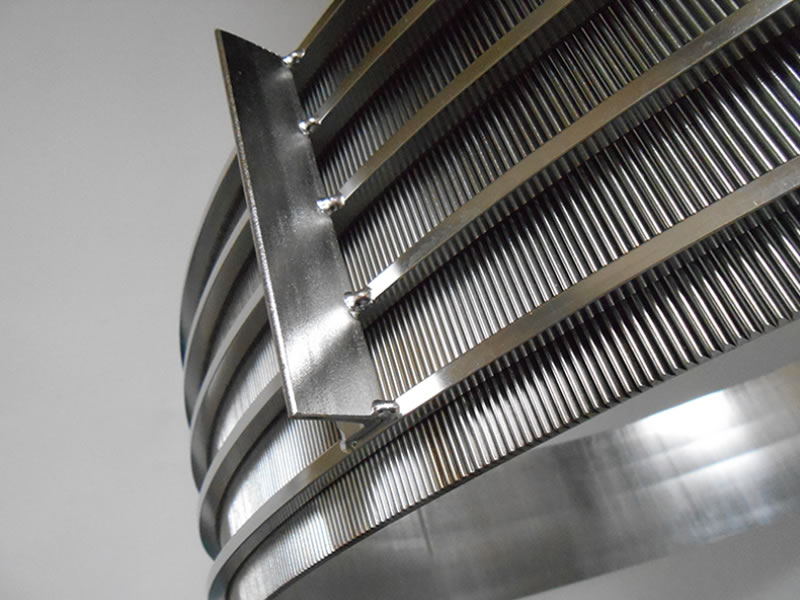

Axial Slot Tube for Cocoa Production

The production of chocolate starts with cocoa beans which are dried, roasted and ground. It’s during the grinding stage that our V-shaped screens are used. It requires specific knowledge and Baitong is proud to say that we have many years of experience producing slot tubes for grinding cocoa beans.

Advantages

• High wear resistance because of wear head shape, long service life, this results in a lower total cost of ownership.

• Custom-made

• Strong construction-rigidity

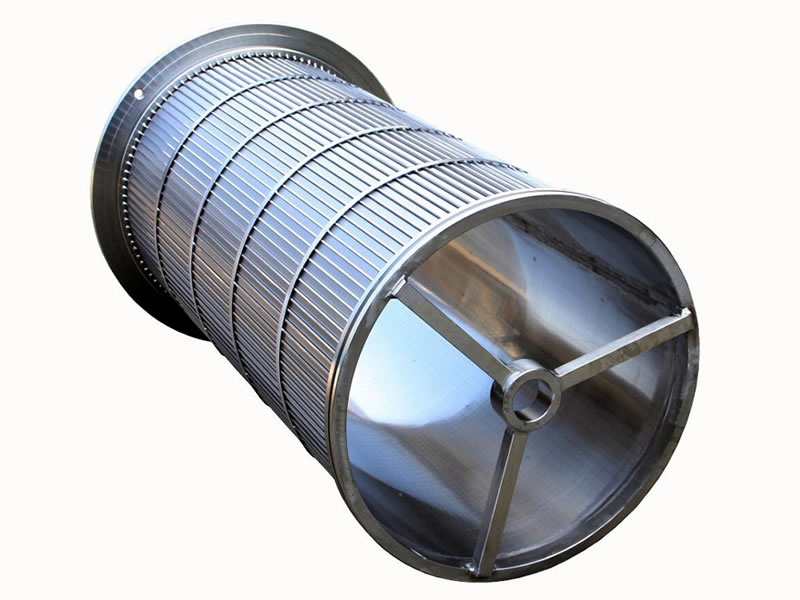

Scrubber Tubes

The scrubber filter elements is used in a key-process of backwashing & fluidization of the nutshell media as its performance dictates the removal of trapped oil and other particles. Baitong wedge wire scrubber tubes use low energy input and short backwash cycle time due to the high open area tatio and excellent roundness.

Technical Details

• Flow can be FITO or FOTI

• Construction can be axial internal, radial internal or radial external wire

• Open area: 14%--25%

• Material: 316L, Duplex, Super Duplex

Advantages

• High open area allows a short backwash cycle time

• Rigidity, wedge wire has sufficient mechanical strength of its own, it does not need a support

• Excellent flow distribution and media retention
