When you selecting wedge wire screen tubes for a project, your first thought is probably, "Make it out of stainless steel". This starting point is correct; That's a solid starting point—the material is the foundation of corrosion resistance. But here's something we've learned from working with countless engineers: the material dictates the screen's lifetime, but its performance hinges on five other crucial parameters.

Choosing the wrong data for any one of these parameters can lead to substandard effluent, frequent clogging, or even complete system failure. As your technical partner, we would like to remind you that, in addition to "stainless steel," please pay close attention to the following five core parameters:

1. Slot Size: The Measure of Precision

This is the heart of the well screens. We are not talking about a rough range here, but a precise measurement, often specified to within a 0.1 millimeter.

The slot size is dictated by your aquifer's sand grain size. A golden rule? The screen slot should be slightly smaller than the D50 (median grain size) of your formation sand. Go too small, and you choke off water flow. Go too large, and you will be pumping sand. The pro move is to provide a sand sample for a sieve analysis. Then we can run the numbers and recommend the perfect slot to optimize yield and formation stability.

2. Open Area: The Throughput Multiplier

Open area is the total percentage of the screen surface made up of those precision slots. This number directly controls your water well's potential yield.

People often think a finer slot automatically means less open area. Not necessarily. Thanks to the robust V-shaped wire profile, wedge wire screens achieve a much higher open area than punched or slotted pipes of comparable strength. Here's the takeaway: After meeting your sand-control needs, choosing a screen with a higher open area means better efficiency and lower pumping costs over the life of the well.

3. Crush Strength: The Backbone of the Screen

Downhole, your screen faces immense pressure from the formation and surrounding filter pack. Its ability to resist collapsing comes down to the size and spacing of its support rods.

What to Watch For: Don't just focus on the outer diameter. Thicker support rods and a tighter rod spacing translate to a much stronger screen. It's critical to match the crush strength to your well depth and formation pressures. Always ask your supplier, "What support rod configuration is right for my project's specific depth and geology?"

4. The V-Wire Profile: Your Built - In Anti - Blinding System

This is the signature feature that makes wedge wire screens so effective against clogging (or "blinding"). The V-shaped wires create a slot that is wider on the inside than the outside.

Why It Matters: This ingenious geometry creates a self-cleaning effect. Sand particles are trapped on the wide part of the "V" but can't wedge themselves into the narrow opening. Natural water movement during pumping or surging is often enough to flush them away, keeping the slot clear for the long run. It's a stark contrast to a straight-sided slot, which is prone to getting permanently plugged.

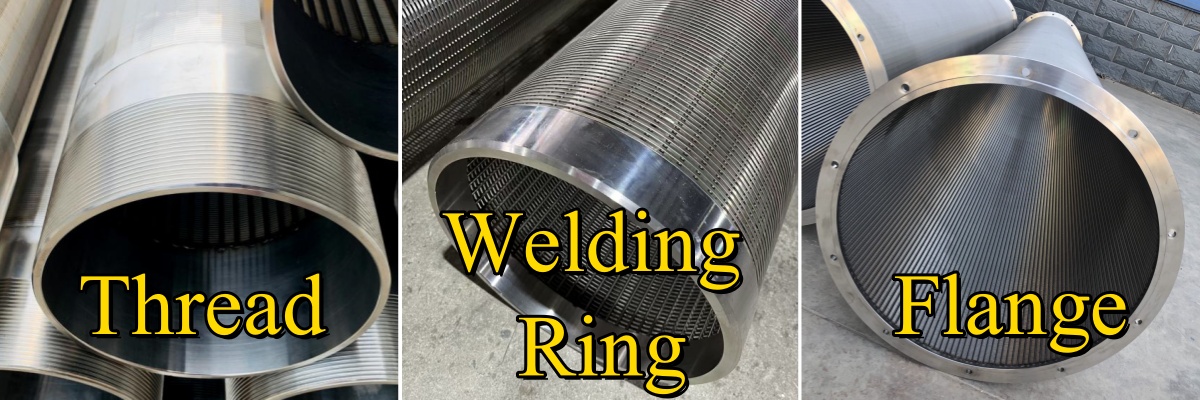

5. The Connection: The Weakest Link?

You can have the best screen in the world, but if the connections between joints are weak, your entire string is compromised. The connection type impacts the overall strength and seal of your well profile.

Your Options:

• Threaded Couplers: Quick to install, great for most shallow to medium-depth wells.
• Butt-Welding: Delivers the highest possible strength, essentially making the joint as strong as the screen itself. This is the go-to for deep wells and critical projects.
• Flanged Ends: Ideal for situations where you might need to dismantle or for large-diameter surface vessels.

Wrapping Up

Selecting the right wedge wire screen is a systems engineering challenge. Once you've settled on the stainless steel grade, the real work begins in fine-tuning the precision, throughput, strength, self-cleaning, and connectivity.

Our best advice? Share your project specifics with us—the well log, water chemistry, and a sand sample if you have it. Our engineering team is here to provide the calculations and recommendations to ensure every meter of screen you purchase is a sound investment.
